Graphify for System Knowledge & Code Graphs

Why Care?

A codebase is a graph — of imports, calls, mounts, and data flow — and extracting it costs nothing. No LLM, no tokens, no API key. Tree-sitter walks the AST and you get 4,353 nodes and 6,176 edges in under a minute.

That makes the picture cheap. What makes it useful is running it twice.

We built this graph once before, on 2026-08-06. It found ~500 cleanly deletable lines, 11 near-identical mount.ts files, and — more valuably — disproved our assumption that the frontend was full of copy-pasted CSS. Then it sat there for five weeks while the code moved out from under it, until its community list was still advertising an app we'd renamed two days after the build.

A graph nobody re-runs is a document, not an instrument. This is the re-run, and the diff is the product.

What's New?

• The second build, code-only and directed to match August exactly, so the comparison is like-for-like

• A node-by-node diff against the preserved August graph — the thing that actually produces findings

• Four findings, two of them things nobody had written down

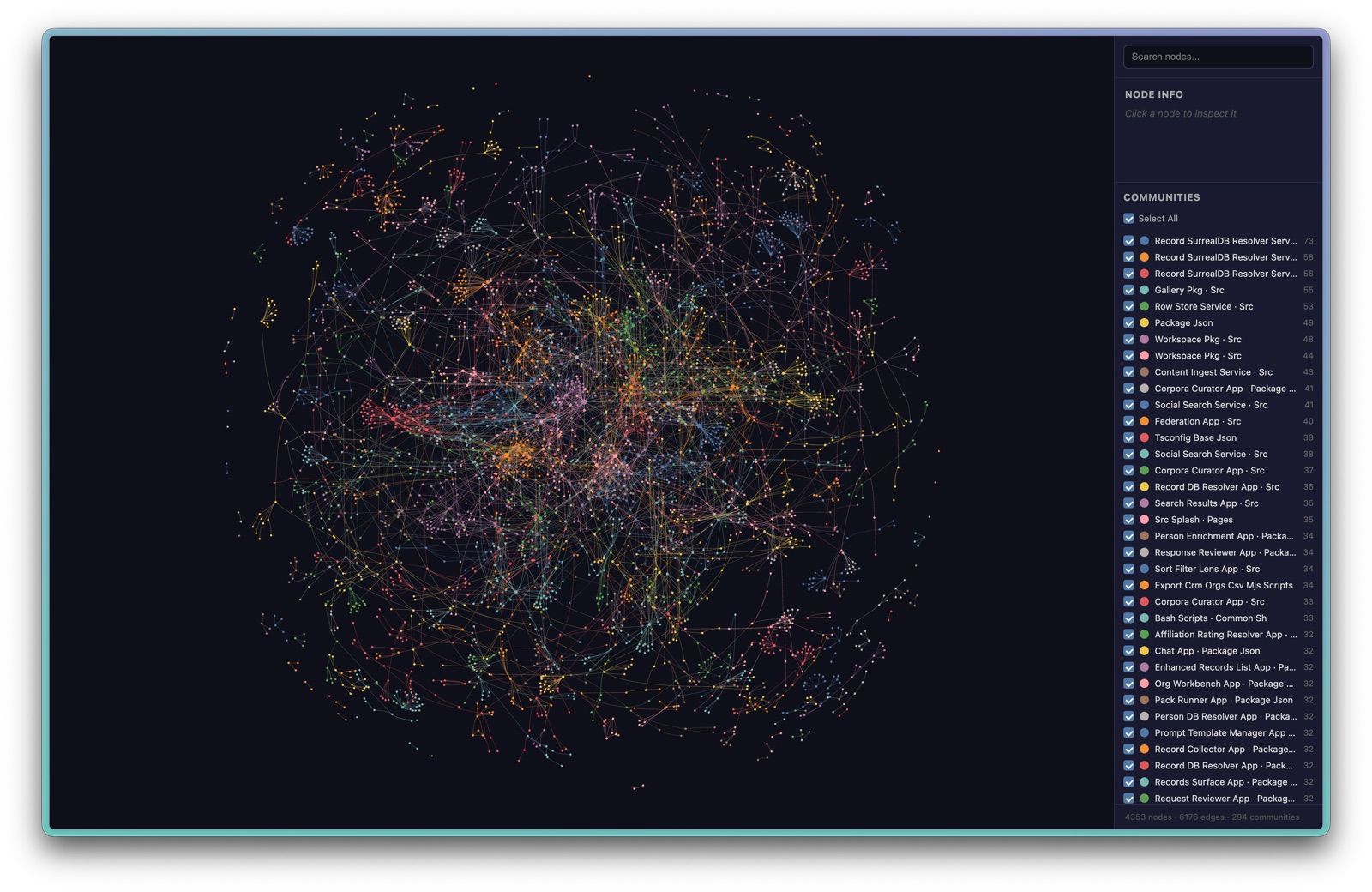

• graph.html — 3.4MB standalone, opens in any browser, no server

• Scoping fix in .graphifyignore so generated diagram renders stop skewing community detection

The headline is a trap

Net +23 nodes. Read that row alone and you'd conclude nothing happened in five weeks.

Underneath: 562 nodes added, 539 removed. A quarter of the graph turned over while the totals barely moved. This is the entire argument for diffing rather than re-reading — a summary line is actively misleading here, and only a node-by-node comparison recovers the truth.

Finding 1 — the rename propagated, and the exceptions held

strategy* nodes went 131 → 4. corpora* went 11 → 142. The graph no longer describes an app that doesn't exist.

The four survivors are the interesting part. They aren't stragglers — they're the strategy | topic | thesis | market-segment | category domain vocabulary that DESIGN.md explicitly says was deliberately not renamed, because it's a data value living in two external client submodules and in on-disk folder names.

So the diff independently confirmed a documented decision. That is what a graph is for: not "did we rename it," but "did we rename exactly what we said we would."

Finding 2 — a consolidation landed that nobody logged

Nine different apps each lost exactly 21 nodes. An identical delta repeating across unrelated units is never a coincidence.

They were per-app tsconfig.json compilerOptions — every app declaring target, module, strict, lib, moduleResolution and fifteen more, inline, separately. Eighteen apps went from ~28 inline nodes each to 11, now extending a new shared tsconfig.base.json.

The base file's own header records what drove it:

"Before this file the 17 apps carried three byte-distinct tsconfig.json variants in an 8/7/2 split — drift, not intent."

That is the August graph's central thesis — repetition without a home — actually acted on. It just never got a changelog entry, so the only place it was legible was the diff.

Finding 3 — the same fix stops dead at the apps/ boundary

Every one of the eleven services sits at 22 inline tsconfig nodes. 22 → 22. Unchanged.

The graph said look here; the disk confirmed it:

10 of 11 service tsconfig.json files are byte-identical   (md5 540460bd…)
 0 of 11 extend anything
18 of 18 apps extend ../../tsconfig.base.json

Ten identical files, and a proven fix sitting one directory away. tsconfig.base.json scoped itself to "every federated member under apps/, plus the federation host in shell/" — a reasonable boundary when it was written, and stale the moment the services grew to twelve.

This is the cheapest actionable item any process has produced here, and neither reading the code nor reading the docs would have surfaced it. It took comparing two graphs five weeks apart.

Finding 4 — the headline August refactor is still unshipped

August proposed collapsing 11 near-identical mount.ts files. Mount nodes went 17 → 19. It grew.

makeMount() now appears as a god node with 19 edges, so the shared helper exists — but the duplication it was meant to remove is still there, and there are two more instances of it than before. The refactor doc's Partially-Shipped status is accurate, and this is the unshipped part.

What the graph considers central now

God nodes, by edge count: CurationState (34), registerContentIngestHandlers() (29), registerRecordResolverHandlers() (25), registerRowStoreHandlers() (24), AugmentItWorkspace (21), runOfficialBlogPack() (20), MountResult (19), makeMount() (19).

Three of the top five are NATS handler registrars. The message bus is more structurally central to this system than any UI surface — worth knowing before anyone proposes changing it.

How to actually use this — agents, humans, and the handoff

A graph that only gets read when someone remembers it exists is the same failure as one that never gets rebuilt. So: who does what.

For agents

Query the graph before you grep. If graphify-out/graph.json exists and the question is structural — what calls this, what would break if I change it, how does data get from A to B — the answer is already extracted. Reading twelve files to reconstruct it is slower and less complete.

graphify query "How does a record get from the collector into SurrealDB?"
graphify path  "AugmentItWorkspace" "RecordSet"
graphify explain "CurationState"

Check the build date first, every time. This is the discipline the August snapshot taught us the hard way: for five weeks the graph confidently named an app that had been renamed. A stale graph is not neutral — it is wrong with confidence, which is worse than absent.

The graph tells you where to look, not what is true. Every finding in this entry was verified against the files before it was written down. Finding 3 came from the graph; the md5 check on eleven service tsconfigs is what made it a fact. Never ship a graph claim unverified.

Rebuild on structural change, not on a schedule. A new unit, a rename, a removal, a federation-contract change. --update re-extracts only what moved, and the AST cache makes it nearly free.

A run that produces no document produced nothing. Findings land in context-v/refactors/ or a changelog entry. The graph is the instrument; the written finding is the output.

For humans

graph.html is for looking, --wiki is for learning. The force-directed view is genuinely useful for shape — which clusters are dense, what sits alone at the edge, how many communities a change would touch. It is bad for reading. When the goal is understanding a subsystem, graphify --wiki generates an index plus one article per community and is far more legible.

Use it to settle arguments with evidence. "The frontend is full of copy-pasted CSS" felt obviously true and was false — the August graph disproved it and saved the wasted refactor. A cheap graph is a cheap way to stop being confidently wrong about your own codebase.

It is an onboarding artifact. The community sidebar is a map of the system by actual coupling rather than by folder layout, which is what a new contributor needs and what the directory tree doesn't show.

How to talk to an agent about it

The phrasing changes the behaviour more than you'd expect.

And the one worth saying out loud when you hand an agent a fresh clone: the graph is not in git. graphify-out/ is ~7MB of regenerable output and is gitignored, so a new checkout has no graph at all. An agent that assumes one exists will answer from training data instead. Ask for a build first.

Honesty

Graph health warning: 437 dangling-endpoint edges, 1 self-loop, 197 collapsed directed edges. The dangling ones are imports reaching packages outside the corpus; the collapsed ones are node pairs carrying multiple relation types (imports_from and re_exports) flattened into one by the DiGraph. Not corruption — but not nothing, and it caps how much the raw edge count can be trusted.

Eleven JSON manifests produced zero nodes and are absent from the graph entirely (speckit.manifest.json, workflow-registry.json, others) — a known upstream issue. A re-run retries them.

This run was code-only. 343 documents and 12 images went unstamped, exactly as in August. That keeps it free and keeps the comparison honest; the doc layer can be added later with --update without re-running AST extraction.

Scoping change: context-v/diagrams/*.html and *.png are now in .graphifyignore — an 804KB rendered diagram and four verification screenshots were entering the corpus and distorting community detection. That is graphify's reading scope only; the files remain committed.

What's Next

• Give the services a shared tsconfig base. Ten identical files, fix already proven in apps/.

• Finish the mount.ts consolidation that has now been outstanding across two graph builds.

• Decide the re-run cadence. Two builds five weeks apart produced this much; the open question in the plan is whether the trigger is structural (a unit added, renamed, or removed) or periodic. The evidence here favours structural — every finding traces to a structural event.

References

• [[Graphify-As-Standing-Practice-And-Per-Component-Diagrams]] — the plan this executes the first half of

• [[Structural-Refactors-Surfaced-by-the-Codebase-Graph]] — the August build and its findings

• [[The-Gap-Between-What-We-Preach-And-What-We-Practiced]] — where the staleness was first counted

• [[Understanding-Codebases-with-Graphify]] — the scoping and reading discipline

• [[2026-09-13_01_Setting-Up-To-Retrofit-Lossless-Disciplines-And-Vigilance]] — the arc this continues
